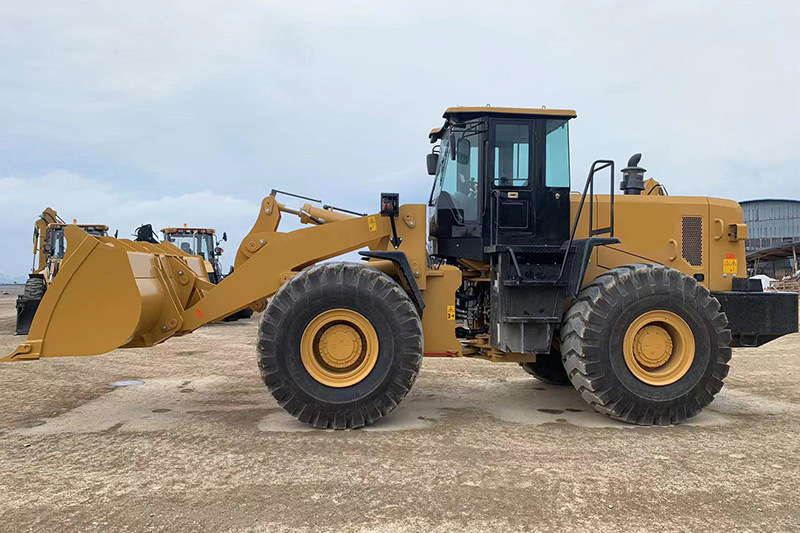

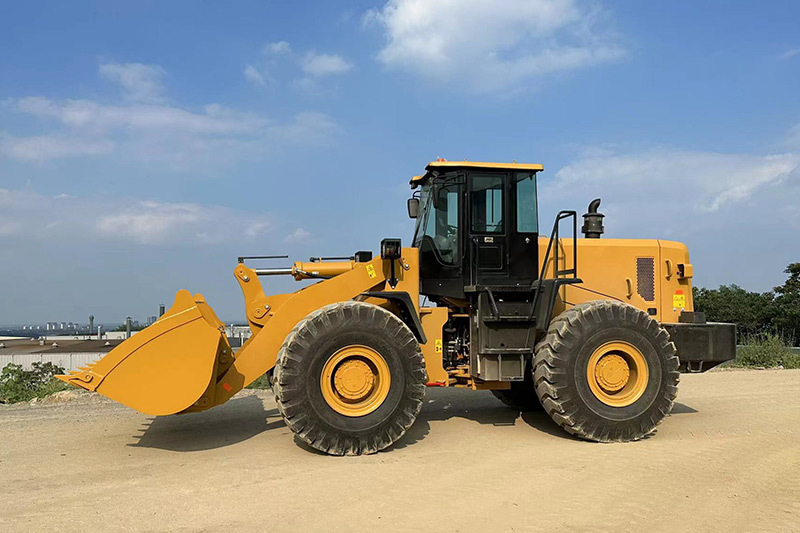

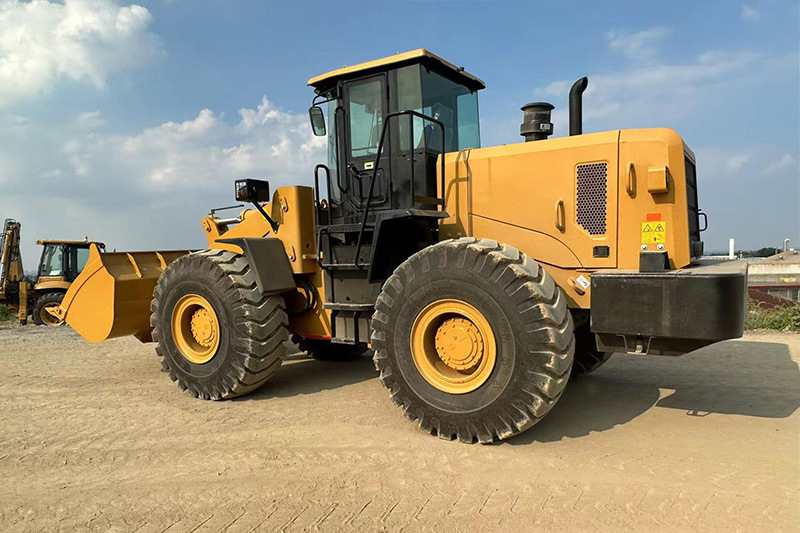

Shanmeng SHANMON966 wheel loader

Key words:

Classification:

Phone:

Performance	Load lifting capacity	6000KG
	Vehicle operation quality	20000KG
	Rated bucket capacity	3.3-3.5m³
	Maximum traction
	Maximum rising power	183KN
	Maximum climbing ability	30°
	Maximum unloading height	3048mm
	Maximum unloading distance
	Overall dimensions (L×W×H)	8414 × 3370 × 3458mm
	Minimum turning radius

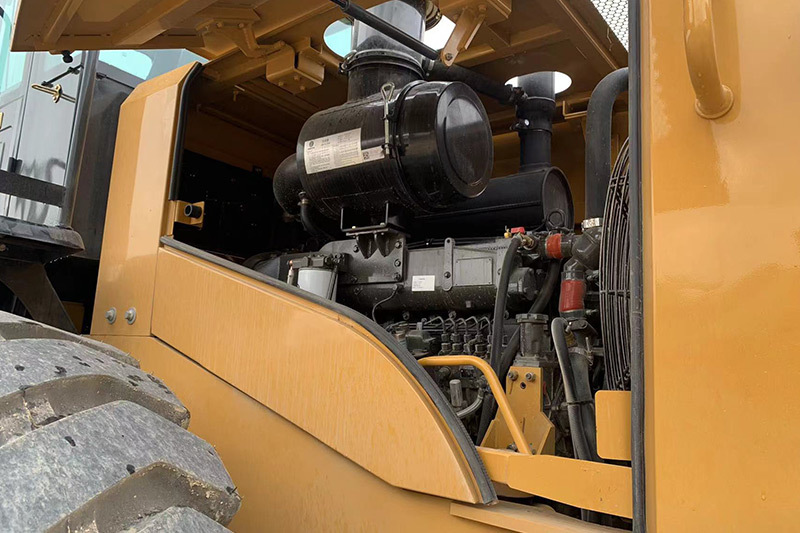

Engine	Model	Weichai
	Type	Vertical in-line, water-cooled, four-stroke
	Number of cylinders-bore × stroke
	Rated power	178Kw
	Maximum torque
	Minimum fuel consumption rate
Drive system	Torque Converter Model
	Gearbox type	Intermediate shaft power shift
	Number of gears	Forward 4th gear, reverse 4th gear
	Maximum speed	38km/h
Drive axle	Wheelbase	3350mm
	Wheelbase
	Minimum ground clearance
Hydraulic system	System working pressure
	Boom Lift Time	5.3s
	three and
	Tank capacity
	Automatic Bucket Leveling Function
Braking system	Service brake
Braking system	Parking brake
Tires	Specifications	23.5-25
	Front wheel air pressure
	Rear wheel air pressure
